Mobile EV Charging: Choose Portable DC or Battery-Integrated Equipment

Direct answer: Mobile EV charging is not one product category. A grid-fed portable DC charger converts a suitable three-phase AC supply into DC where it is needed. A battery-integrated mobile charger carries stored energy to the vehicle. Choose between them by defining the energy required per service, services per shift, available input power, vehicle acceptance limits, connector, transport method and replenishment plan—not by DC kilowatts alone.

That distinction prevents the most expensive specification error in mobile charging: buying a high-output charger that has no adequate energy source behind it.

A 30 kW portable DC charger can be useful in a workshop, depot, test area or temporary site with a compatible upstream supply. It does not create energy; it relocates DC conversion. A 240 kW battery-integrated unit can deliver a much higher DC output away from a fixed high-power connection, but its onboard energy, reserve, transport weight and recharge cycle become part of every dispatch.

This guide is for fleets, roadside-assistance operators, vehicle workshops, temporary charging providers, distributors and EPC teams deciding which architecture belongs in a quote.

Terminology boundary: Consumer search results often use “portable EV charger” for an AC cordset carried in a car. This guide covers commercial mobile DC charging equipment. It does not rank consumer travel chargers or imply that commercial equipment can use an arbitrary wall outlet.

First decide whether the energy source moves

There are two practical commercial architectures in this guide.

Grid-fed portable DC charger

This is a movable AC-to-DC charger. It is positioned near the vehicle and connected to a defined AC source. HG Power's controlled documents include 20 and 30 kW examples using three-phase 380 V ±15% input and one DC output.

The architecture fits when:

• the site already has a compatible, adequately protected three-phase supply;
• charging points need to move among workshop bays, depot positions or temporary operating areas;
• the vehicle needs DC charging, but civil work for a permanent pedestal is not justified;
• energy comes continuously from the site, so onboard storage is unnecessary.

Its key constraint is upstream power. “Portable” describes the equipment form and deployment pattern; it does not remove input-cable, grounding, protection, thermal-clearance or site-capacity requirements. The 30 kW HG Power manual, for example, instructs the user to verify grid capacity and grounding and says the unit should not be used in rain. Those model-specific operating instructions take precedence over assumptions based only on the enclosure's IP rating and must remain in the deployment plan.

Battery-integrated mobile EV charger

This architecture combines battery storage, BMS, EMS, power conversion and DC charging inside a transportable enclosure. Energy can be charged into the unit at a base, then dispatched to a vehicle or temporary site.

The architecture fits when:

• a suitable grid connection is absent at the service point;
• the operating model is roadside replenishment or charging delivered to a customer;
• a temporary site needs higher DC output than its live grid connection can provide;
• deployment speed or changing locations makes a fixed site impractical.

Its key constraint is energy inventory. The DC output rating tells you how quickly the unit may transfer energy under suitable conditions; nominal battery capacity tells you the size of the onboard energy store. Neither number alone proves how many vehicles the unit can serve.

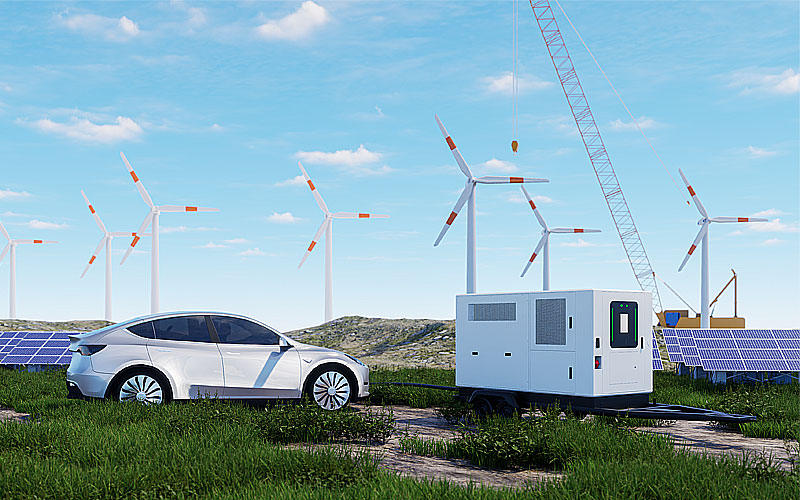

First-party product render showing the enclosure form. It is not presented as a customer installation or proof of a specific project outcome.

Use five limits to choose the architecture

Treat mobile charging as a chain with five limits. The weakest link sets the real service capability.

1. Mission energy

Define the energy that must reach each vehicle, not a promised percentage or driving range. A roadside rescue mission may only need enough energy for the driver to reach a safe charger. A fleet support mission may need a larger, repeatable transfer between shifts.

Record a normal, high and emergency energy target in kWh. Do not convert those targets to miles or kilometres unless the vehicle, route, temperature and consumption assumption are explicitly stated.

2. Vehicle acceptance

Actual charging power is limited by the vehicle's inlet, communication, battery voltage, state of charge, temperature and charge-control strategy. Even if the charger is rated at 180 kW, the vehicle may request substantially less.

For planning:

Actual DC charging power ≤ the lowest active limit of charger, vehicle, output voltage/current envelope, cable and thermal/control conditions.

The time calculation therefore uses actual accepted power, not automatically the charger nameplate.

3. Energy source or input

A grid-fed unit needs a suitable AC source during every session. A battery-integrated unit needs enough approved usable stored energy for the dispatch and a realistic way to replenish it afterward.

Battery buffering can help separate a charger's short-duration output from a weaker grid connection, but the energy balance remains unavoidable. The US Department of Energy's battery-buffered charging guidance describes this general architecture for sites with constrained grid capacity; a mobile project still needs its own load profile, recharge window and controls. (US DOE / AFDC)

4. Deployment and transport

Record how the unit moves: by hand, caster, forklift, trailer or truck integration. Include packed dimensions, operating dimensions, lifting points, centre of gravity, restraint, axle/payload constraints, cable handling and the surface on which the equipment will operate.

The term “mobile EV charging truck” describes an assembled operating system, not just the charger enclosure. Vehicle integration, road legality, mounting, ventilation, access, fire strategy and local approvals belong to the integrator and local qualified parties.

5. Turnaround and operations

The dispatch is not finished when the EV unplugs. The mobile unit may need to return, recharge, cool, transfer data, be inspected and become available for the next call. Ask:

• How long is one round trip?
• Can the unit recharge between calls or only overnight?
• What reserve is mandatory at dispatch?
• What happens when a call requires more energy than forecast?
• Is a second unit needed while the first replenishes?

This turns a hardware purchase into an operable service design.

Size a battery-integrated unit from the mission

Use a transparent energy ledger. Avoid the shortcut of dividing nominal battery capacity by a desired service size and calling the result guaranteed.

Step 1: define delivered energy per service

Let the project target be E_EV, the kWh measured at the vehicle-side output for one service. This should come from the operating mission.

Step 2: define approved usable onboard energy

Nominal capacity is not the same as energy available to vehicles. The project team must define:

• allowed state-of-charge window or depth of discharge;
• dispatch reserve;
• conversion and cable losses;
• auxiliary loads for cooling, controls and communications;
• capacity allowance over the intended life and operating temperature.

Call the resulting approved amount E_usable. A comparable quotation should state nominal capacity, permitted state-of-charge window, dispatch reserve, assumed auxiliary consumption, conversion-loss basis, temperature/capacity allowance and exactly where delivered energy is measured. Without that common boundary, two suppliers' “usable kWh” figures may describe different quantities.

Step 3: calculate the first-pass service count

First-pass services per charge = floor(E_usable ÷ E_EV)

This is only an energy check. The duty-cycle test still needs travel time, connection time, vehicle acceptance, operator procedures and recharge time.

Illustrative example—not a product promise

Assume a project has approved 126 kWh as usable after its operating window, reserve and loss allowances. If the target is 21 kWh delivered per service:

floor(126 ÷ 21) = 6 services before duty-cycle constraints

If the vehicle accepts an average of 42 kW during that transfer:

21 kWh ÷ 42 kW = 0.5 h, or 30 minutes of energy-transfer time

Connection checks, travel, queueing and pack thermal behavior add time. If average accepted power falls to 21 kW, the simplified transfer time doubles. This is why a supplier cannot responsibly quote a universal number of rescues per shift from battery capacity alone.

Compare documented HG Power configurations without blending them

The following values come from specific HG Power manuals and specifications. They are configuration evidence, not proof that every connector, network option or approval applies to every shipment. Final quotations must name the exact model and destination document set.

Read voltage and current together

Power cannot exceed the combined electrical limits. For example, a 240 kW nameplate with a documented 300 A maximum requires 800 V at the output to reach 240 kW mathematically. At a 400 V battery voltage, 300 A corresponds to 120 kW before considering other limits.

This is not a defect; it is how an output envelope works. Ask suppliers for the power-versus-voltage curve or current limits across the target vehicle voltage range. A single maximum-kW label is insufficient for mixed fleets.

Grid-fed portable DC: what “portable” still requires

The documented 20 and 30 kW units are compact relative to fixed high-power dispensers, but they remain commercial electrical equipment.

Before purchase, verify:

1. exact input voltage, frequency, phase and current;
2. connector or hardwired input arrangement;
3. upstream breaker, residual-current, surge and grounding design;
4. feeder length and voltage drop;
5. cable route, heat dissipation and working clearance;
6. indoor/outdoor limits, shelter and water exposure;
7. how the unit is restrained during use and transport;
8. vehicle connector and communication compatibility;
9. authorization, metering and backend requirements;
10. acceptance tests after each new deployment condition.

IEC 61851-1 covers general EVSE characteristics, connection and electrical-safety requirements. Referencing it in a manual is not the same as showing that a specific shipped configuration has completed the conformity path required in the destination market. (IEC 61851-1)

Battery-integrated mobile charging: design the replenishment loop

The mobile unit's base is part of the charging network. Its recharge plan must answer four questions.

How much energy returns to the base?

Define a minimum return state of charge. An operator should not plan to arrive at zero. Reserve may be needed for an extended call, traffic delay, auxiliary systems or a second emergency.

How fast can the unit recharge?

Use the actual input path and battery charge limit. Do not use the EV-side DC output rating as the recharge rate. The HG Power specifications list different AC/DC input paths by model; the final design must state which path is installed and available at the base.

Can charging and dispatch schedules overlap?

If all calls occur in a daytime peak and replenishment happens overnight, energy capacity may dominate. If calls are spaced and the base can recharge between them, input power and turnaround may be more valuable than adding battery capacity.

What is the degraded mode?

Plan for loss of a charger module, communications, a service vehicle or the base recharge point. Decide which sessions are still permitted, what reserve is protected and how an operator identifies a unit that must not dispatch.

First-party product render used to show enclosure scale and access surfaces. Transport mounting, clearances and service access require project-specific integration.

Connector and backend compatibility need separate proof

Vehicle-to-charger compatibility and charger-to-backend compatibility are different interfaces.

EV interface

Specify the vehicles, inlet standard, battery-voltage range and communication path. IEC 62196-3 addresses dimensional compatibility for DC and combined AC/DC couplers, but a standard reference alone does not prove that the selected cable, inlet communication and destination configuration work as a complete system. (IEC 62196-3)

For a mixed fleet, create a vehicle matrix with:

• make, model and model year;
• inlet / connector;
• battery-voltage range;
• maximum DC power and current where available;
• cold/hot charging limitations;
• target energy per mobile session.

Backend interface

If the unit must connect to a charging-management system, specify the exact OCPP version, transport, security profile, SIM/network responsibility, offline behavior, metering fields and tested backend. The Open Charge Alliance provides separate specifications and a certification program; “OCPP 1.6J optional” in a product document must not be rewritten as “OCPP certified.” (Open Charge Alliance downloads, OCA certification FAQ)

When mobile EV charging is the wrong answer

Mobile equipment adds value when location or grid access changes. It can be the wrong architecture when:

• the same vehicles return to the same depot every day and a fixed, managed charging system can cover the schedule;
• demand is continuous enough that mobile batteries spend most of their time shuttling back to recharge;
• the energy per call is too large for the available transport and reserve envelope;
• towing or directing drivers to an existing fast charger is operationally simpler;
• the site has enough long dwell time for lower-power AC charging;
• local transport, electrical or fire requirements make the proposed integration impractical.

For repeatable fixed-site demand, start with a commercial EV charger procurement framework. For long-dwell fleets, compare a commercial Level 2 design. For high-power fixed DC, use the Level 3/DC specification guide and treat cost with the commercial DC fast-charger cost boundary.

Build a comparable RFQ with 15 inputs

Send every supplier the same project data.

1. Use case: roadside rescue, workshop, vehicle testing, temporary event, fleet overflow or delivered charging service.
2. Vehicles: make/model/year and quantity by group.
3. Connector: CCS1, CCS2, CHAdeMO, GB/T or other exact requirement.
4. Vehicle voltage/current acceptance: target range and known limits.
5. Energy per service: normal, high and emergency target in kWh delivered to the EV.
6. Services per shift: target, peak and service-level commitment.
7. Dispatch reserve: minimum remaining energy and reason.
8. Schedule: operating hours, travel time, connection time and base-return window.
9. Available input: voltage, phase, frequency, current, protection and location.
10. Replenishment method: base AC/DC source, available hours and simultaneous operations.
11. Mobility method: indoor relocation, forklift, trailer or truck integration; state payload and dimensional limits.
12. Environment: temperature, altitude, humidity, dust/water exposure and shelter.
13. Digital scope: authorization, payment, metering, OCPP/backend, offline operation and data ownership.
14. Destination: country, installation context and required model-specific documentation.
15. Acceptance evidence: factory tests, vehicle interoperability check, metering test, protections, alarm/fault records, operator training and documentation handover.

Ask the quotation to separate standard configuration, project options, exclusions and responsibilities. A useful response should show the complete energy path—not only the charger cabinet.

Acceptance testing should reproduce the mission

A factory nameplate check is not enough. The test plan should cover:

• startup, grounding and protection checks;
• connection with representative target vehicles;
• charging at low and high points of the relevant battery-voltage range;
• verification of current/power limits and thermal derating behavior;
• metering and session-record reconciliation;
• network loss and offline behavior;
• emergency stop and recoverable fault procedures;
• usable-energy and reserve logic for a battery-integrated unit;
• recharge-time test using the real base input;
• one complete dispatch simulation, including transport restraint and cable handling.

The US DOE's fleet guidance emphasizes matching charging technology to vehicle schedules and preparing operator, technician and emergency-response training. Its installation costs and US context are not universal, but the operational principle applies: the equipment must fit the fleet process, not just the electrical drawing. (US DOE AFDC)

FAQ

Is a mobile EV charger the same as a portable EV charger?

Not always. Consumer “portable EV charger” often means an AC cordset. Commercial mobile charging may mean a movable grid-fed DC charger or a battery-integrated charging unit. Define the energy source, input, output and transport method.

Can a portable DC charger work without the grid?

A grid-fed portable DC charger needs a compatible power source while charging. A battery-integrated unit can deliver stored energy away from the grid, but it still needs a replenishment plan.

How many vehicles can a 158 kWh mobile charger serve?

Nominal capacity alone cannot answer. Define the approved usable state-of-charge window, reserve, conversion and auxiliary losses, target kWh delivered per vehicle and duty cycle. Divide approved usable energy by energy per service, round down, then test time and operations.

Will a 240 kW charger deliver 240 kW to every EV?

No. Actual power depends on the vehicle request, battery voltage, charger current/output envelope, cable and thermal/control conditions. The documented 240 kW HG configuration has a 300 A maximum; the voltage at the operating point therefore matters.

Does OCPP support prove vehicle compatibility?

No. OCPP addresses charger-to-management-system communication. Vehicle charging uses a separate connector and EV-to-EVSE communication path. Both interfaces need verification.

Can the equipment be installed on any truck?

No. Equipment mass, dimensions, mounting, restraint, access, thermal design, axle/payload limits, road rules and local approvals must be engineered for the selected vehicle or trailer.

The decision in one line

Choose grid-fed portable DC when the power source exists and the conversion point needs to move. Choose battery-integrated mobile charging when the energy source must move—then size the unit from delivered energy, reserve, duty cycle and replenishment before choosing the headline kW.

To request a configuration review, send HG Power the 15 inputs above. The response should identify a model-scoped power and energy envelope, connector path, input/recharge method, communication options, documentation boundary and acceptance plan—not a generic promise based on one nameplate.

Sources and document scope

HG Power controlled documents used: ENC-DCX020A 20 kW portable DC charger specification; ENC-DCX030A 30 kW portable DC charger manual; CYD158K-120, CYD210K-180 and CYD316K-240 mobile charging equipment specifications. Values are limited to the named models and documented options.

Independent references: US Department of Energy Alternative Fuels Data Center fleet-charging guidance and battery-buffered charging help sheet; IEC 61851-1; IEC 62196-3; Open Charge Alliance OCPP downloads and certification FAQ. Links appear at the claims they support.

Technical review: Marvin
Evidence reviewed: 13 August 2026
Scope note: Product values in this guide are limited to the named HG Power source documents. Destination compliance, electrical design, transport integration, permitting and installation require model-specific evidence and appropriately qualified local parties.
