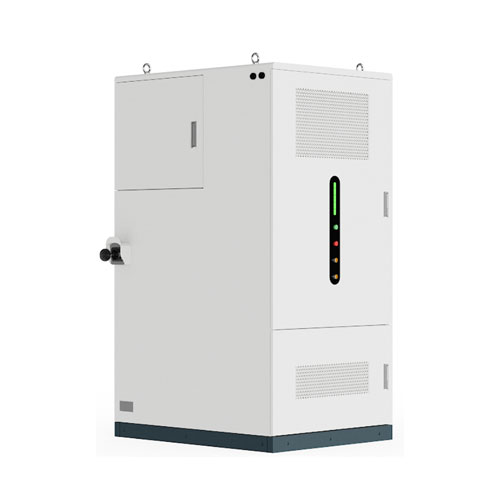

Photovoltaica Diesel Energy Storage Systems 110K-50
Application : Energy Storage + Photovoltaics + Diesel Generator + Charging
Highlights :
- Scheduling with Photovoltaics Priority, Energy Storage Regulation, Diesel Backup.
- Photovoltaics have zero fuel cost, diesel consumption can be reduced by up to 80%.
- The system’s power generation capacity can be increased by 10%-20%.
- Photovoltaics replace a large portion of diesel power generation.
- reducing noise and emissions more 50%, decreasing reliance on diesel generators.
SPECIFICATION
| Capacity | 110kWh |
| Battery Voltage Range | 308-401.5Vdc |
| Diesel Generator Input Power | 50kW |
| Photovoltaic Input Power | 50kW |
| Maximum Output Power to Load | 100kW |
| Diesel Generator Input Voltage | 400±15%VAC |
| Photovoltaic Input Voltage | 300~700Vdc |
| Load Output Voltage | 400±15%VAC |
| Operating Frequency | 50Hz |
| Battery Charge Rate | 0.5C |
| Battery Discharge Rate | 0.5C |
| Depth of Discharge (DoD) | ≤95% |
| Nominal Voltage | 3.2V |
| Grouping Method | 1P22S |
| Pack Voltage | 70.4V |
| Pack Weight | 320kg |
| Cycle Life | ＞6000 cycles |
| Operating Temperature | -20~50℃ |
| Noise | <60db |
| Protection Level (IP Rating) | IP54 |
| Cell Type | 3.2V/314Ah |
| Nominal Energy | 22.1kwh |
| Overall Dimensions | 1560*1100*2300(mm) |
| Overall Weight | 2t |
