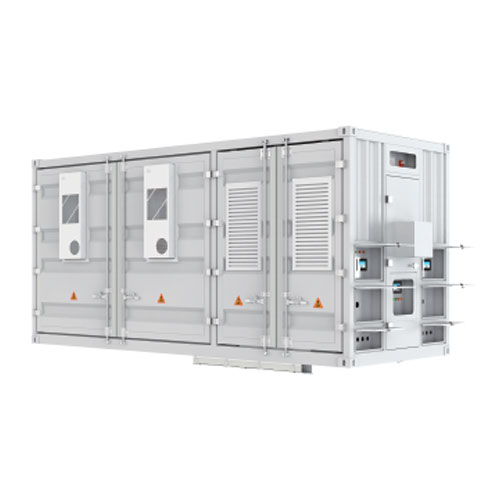

Container Energy Storage System
Application : Combined photovoltaic, energy storage, and charging stations;
Highlights :
- Fast DC-coupled charging, minimal grid impact.
- Over/under voltage, current, temperature; touchscreen alerts.
- Single software for energy storage & charging
- Adjustable CC/CV/float/equalizing modes.
- Space-saving, modular design.
SPECIFICATION
| Capacity | 215kWh |
| Charge power | 100kW |
| Discharge power | 100kW |
| Grid voltage | 380Vac±15% |
| Input Methods | 3-phase,4-wire |
| Grid frequencies | 45~65HZ |
| Ambient Temperature Range | -25 to 55°C |
| DC Voltage Range | 500~900Vdc |
| Discharge depth | ≤95% |
| Charge/discharge ratio | ＜0.5C |
| Cycle times | ＞6000 |
| Battery | 3.2V/280Ah |
| Pack voltage | 153.6V |
| Total current harmonic | ＜3% |
| Power factor | ≤99% |
| Protection level | IP54 |
| External communications | Ethernet |
| Cooling method | Liquid-cooled |
| Temperature range | -20~55℃ |
| Anti-reverse flow meter | Optional |
| Fire extinguishers | Aerosol |
