How to Install an EV Wall Charger at Home: Installing a dedicated Level 2 EV wall charger at home is the smartest way to ensure your electric vehicle (EV) is always ready to go. While professional installation is often recommended, a DIY EV charger installation is achievable for experienced homeowners with the right tools, safety precautions, and electrical knowledge. This comprehensive guide walks you through the entire process, from planning to final testing.
What is an EV Wall Charger (Level 2 Charger)?

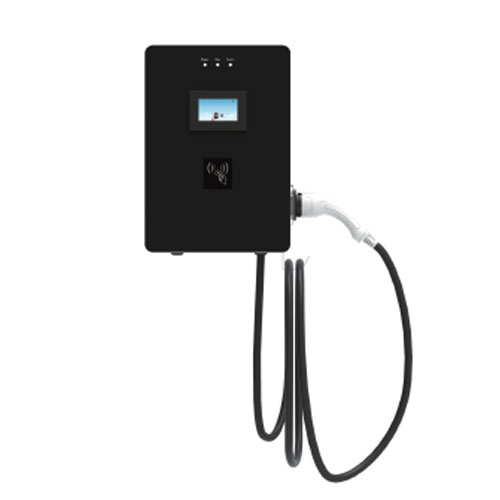

An EV wall charger (also known as a Level 2 EVSE – Electric Vehicle Supply Equipment) is a permanently mounted charging station designed for home charging. It connects directly to your home’s 240-volt electrical circuit, providing significantly faster and more efficient charging than a standard household outlet (Level 1). These units are typically rated for 16-32 amps or higher (e.g., 7kW, 11kW, 22kW)
Why Install a Dedicated Home EV Charger Key Benefits
Faster Charging Times: Drastically reduces charging time compared to a standard 120V outlet (Level 1). Typically 3-8 hours vs 12-24+ hours.
Convenience: Wake up to a fully charged EV every morning. No more trips to public chargers for routine charging.
Energy Cost Savings: Easily take advantage of lower off-peak electricity rates scheduled through the charger or your EV.
Enhanced Safety: Dedicated circuits and built in safety features (like ground fault protection, auto shutoff) minimize risks compared to improvised solutions.
Increased Home Value: A professionally installed EV charger is becoming a desirable amenity for homebuyers.
Home Charging Comparison:
Planning & Permits
Select the Optimal Location: Close to your parking spot (ideally within 5-10 feet / 1.5-3 meters of where the charge port rests). Within practical distance of your main electrical panel (longer runs require thicker, more expensive wire). Accessible location, avoiding direct vehicle impact risk. Outdoor Installations:MUST use a weatherproof (IP65 or higher rated) charger and conduit system. Consider snow, rain, and sun exposure. Mounting Height:Typically 48-60 inches (1.2 – 1.5 meters) above ground level for safety and accessibility. Check Local Regulations & Permits (MANDATORY): Electrical Permits: Required in almost all US and EU jurisdictions for this type of work. Contact your local building department. An inspection is usually required. Utility Notification: Inform your electric utility company. Some offer incentives, rebates, or specific requirements (like separate meters for EV charging). They may also advise if your service needs an upgrade. Homeowners Association (HOA) / Property Manager: Get written approval if applicable. HOAs often have rules about exterior installations. National/Regional Electrical Code: Installation MUST comply with current codes. Assess Your Electrical Panel Capacity: This is critical. Does your main panel have sufficient spare amperage capacity to add a new 40-50 amp circuit? Older panels may be full or near capacity. Check the main breaker size (e.g., 100A, 150A, 200A) and calculate existing loads. If unsure, consult an electrician immediately. A panel upgrade might be necessary. Read the Manual! Your specific EV charger model will have detailed installation instructions and requirements. Follow them precisely.
When to Call a Professional Electrician
If you are uncomfortable or unsure about any step, especially working inside the electrical panel. If your electrical panel is full, old, or undersized. If the wire run is very long or complex (through walls, attic, crawlspace). If local codes mandate licensed electrician installation (common for permanent circuits). If you encounter any unexpected issues or errors during installation or testing. If you need a service panel upgrade.
Conclusion
Successfully installing your own Level 2 EV wall charger is a rewarding project that significantly enhances the convenience and efficiency of EV ownership. By meticulously following this guide, prioritizing safety at every step, obtaining necessary permits, and consulting a licensed electrician whenever in doubt, you can achieve a reliable and safe home charging solution. Enjoy the benefits of waking up to a fully charged EV every morning, ready for your next journey.
